KLETON

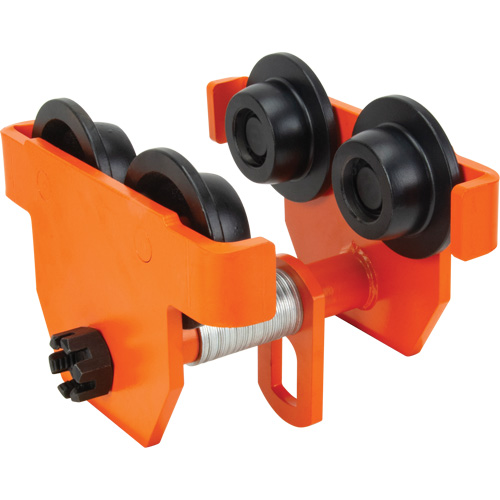

Adjustable Trolley with Safety Plates

• Model: LW552
• Mfr. No.: LW552
• Category: Material Handling & Storage

• Easily adjusts to fit various flanges, I-beams and H-beams
• Use on straight or curved track
• Can be installed or removed at any position on the beam
• Heavy-duty cast iron wheels
• Deep width flange provides superior contact with the beam
• Safety plate included
• Meets ASME B30.16

Specifications

Capacity	1000 lbs. (0.5 tons)
I-Beam Flange Width	2-5/16" - 4-14/16"
Manufacturer's Warranty	1 Year Limited

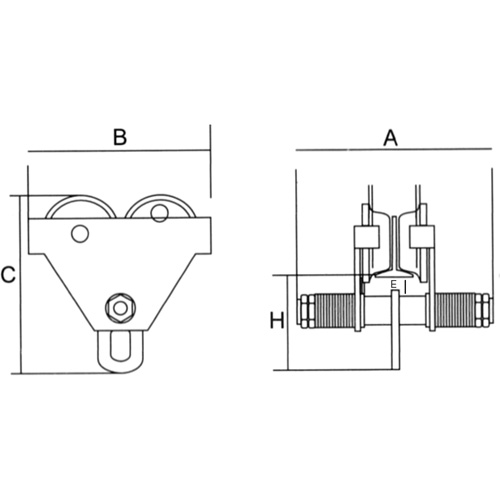

A	7-11/16"
B	8"
C	7-3/8"
E	7/8"
H	4-7/16"
Net Weight	11.25 lbs.
Weight	9.84 lbs.
Length	0.83333 ft.
Width	0.31667 ft.
Height	0.54167 ft.
Unit of sale	Each
Country of origin	CN
Category	Material Handling & Storage
