KLETON

Adjustable Trolley with Safety Plates

• Model: LW561
• Mfr. No.: LW561
• Category: Material Handling & Storage

• Easily adjusts to fit various flanges, I-beams and H-beams
• Use on straight or curved track
• Can be installed or removed at any position on the beam
• Heavy-duty cast iron wheels
• Deep width flange provides superior contact with the beam
• Safety plate included
• Geared trolleys include two geared wheels operated by hand chain
• Meets ANSI B30.11

Specifications

Capacity	10000 lbs. (5 tons)
I-Beam Flange Width	4-14/16" - 6-7/8"
Manufacturer's Warranty	1 Year Limited
Net Weight	74.97 lbs.

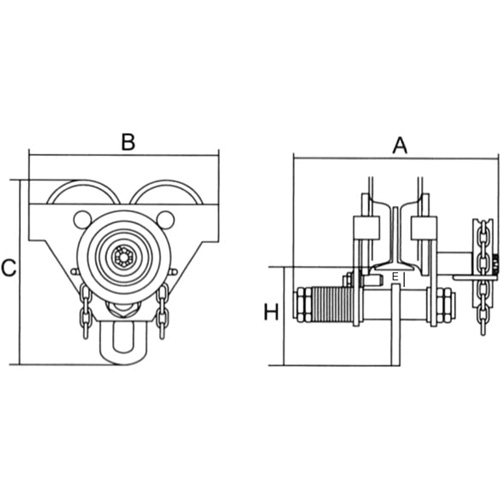

A	13-9/16"
B	14-1/8"
C	13-1/8"
E	13/16"
H	7-3/16"
Weight	71 lbs.
Length	1.45833 ft.
Width	0.73333 ft.
Height	0.91667 ft.
Unit of sale	Each
Country of origin	CN
Category	Material Handling & Storage
