KLETON

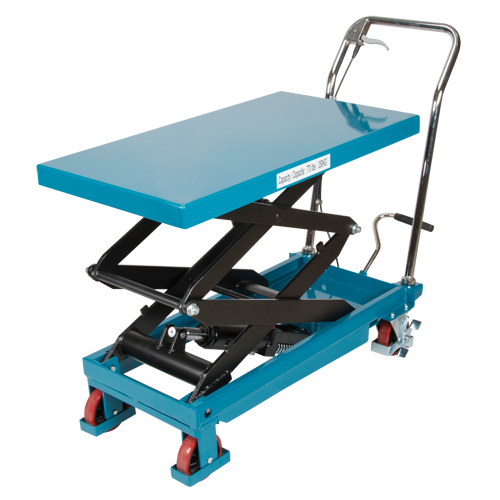

Heavy-Duty Hydraulic Scissor Lift Table

• Model: MJ520
• Mfr. No.: MJ520
• Category: Material Handling & Storage

• Heavy-duty construction with captured scissor rollers for maximum stability
• Superior hydraulic systems feature an integrated pump-cylinder for maximum reliability
• High quality casters and wheels for exceptional roll ability (two fixed, two swivel)
• Ergonomic push handle with convenient lowering control
• Lowering control automatically stops when released for added safety
• Convenient maintenance pins secure the scissor legs for inspection and maintenance on larger models
• Quality powder coated finish provides exceptional durability and corrosion resistance
• Platform Height Lowered Wheels Included: 14"
• Platform Height Raised Wheels Included: 51 1/4"
• Platform height dimensions include the wheels
• Includes caster locking brakes which keep table stationary on inclined or uneven surfaces

Specifications

Platform Dimensions	35-3/4" L x 19-3/4" W
Capacity	770 lbs.
Raised Height	51.25"
Lowered Height	14"
Frame Material	Steel
Handle Height	39"
Pedal Strokes to Max.	53
Weight	220 lbs.
Colour	Kleton Blue
Wheel Diameter	5"
Tread Width	1-3/8"
Manufacturer's Warranty	1 Year Limited
Weight	220 lbs.
Length	3.33333 ft.
Width	1.33333 ft.
Height	1.75 ft.
Unit of sale	Each
Country of origin	CN
Category	Material Handling & Storage
