KLETON

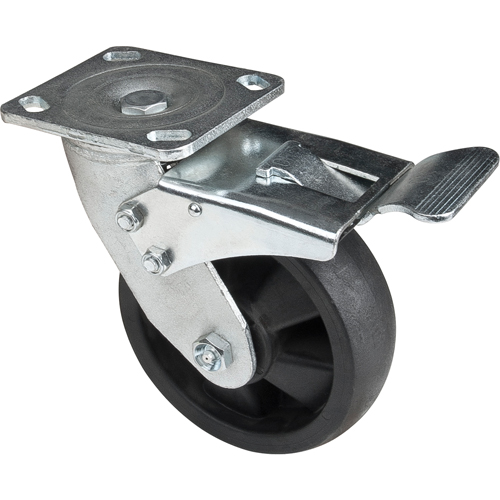

Hi-Temp Caster

• Model: ML863
• Mfr. No.: ML863
• Category: Material Handling & Storage

• Smooth rolling, low noise operation
• Non-marking
• Zinc chrome-plated finish provides corrosion resistance
• Superior resistance to most oils, chemicals and grease
• Double ball raceway
• Ball bearing
• Total locking brake locks the wheel and keeps the swivel from turning

Specifications

Wheel Diameter	6" (152.4 mm)
Capacity	880 lbs. (399 kg.)
Wheel Material	Nylon
Caster Type	Swivel with Brake
Frame Material	Steel
Tread Width	1-3/4" (44.5 mm)
Bolt Hole Spacing	2-5/8" x 3-5/8" (66.67 mm x 92.07 mm) - 3" x 3" (76.2 mm x 76.2 mm)
Bolt Hole Size	7/16" (11 mm)
Plate Size	4" x 4-1/2" (102 mm x 114 mm)
Height	7 5/8" H
Brake Type	Top Locking
Max. Temperature	230°C
Manufacturer's Warranty	1 Year Limited
Weight	6.45 lbs.
Length	0.78333 ft.
Width	0.33333 ft.
Height	0.64166 ft.
Unit of sale	Each
Country of origin	CN
Category	Material Handling & Storage
