KLETON

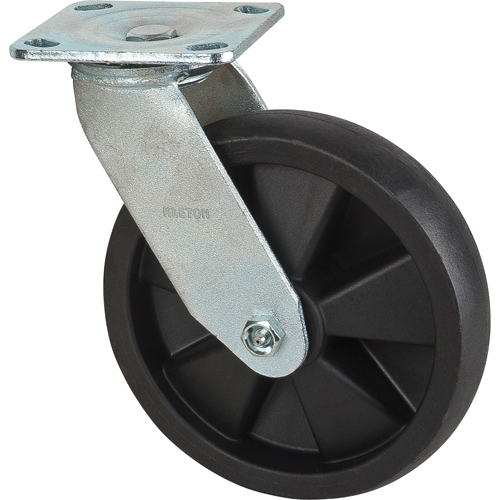

Hi-Temp Caster

• Model: ML864
• Mfr. No.: ML864
• Category: Material Handling & Storage

• Smooth rolling, low noise operation
• Non-marking
• Zinc chrome-plated finish provides corrosion resistance
• Superior resistance to most oils, chemicals and grease
• Double ball raceway
• Ball bearing; Plate size: 4" x 4 1/2"; Bolt hole centers: 3" x 3 1/3"; Bolt hole size: 7/16"

Specifications

Wheel Diameter	8" (203.2 mm)
Capacity	1000 lbs. (453 kg.)
Wheel Material	Nylon
Caster Type	Swivel
Frame Material	Steel
Tread Width	1-3/4" (44.5 mm)
Bolt Hole Spacing	2-5/8" x 3-5/8" (66.67 mm x 92.07 mm) - 3" x 3" (76.2 mm x 76.2 mm)
Bolt Hole Size	7/16" (11 mm)
Plate Size	4" x 4-1/2" (102 mm x 114 mm)
Height	9 1/2" H
Max. Temperature	230°C
Manufacturer's Warranty	1 Year Limited
Weight	6.028 lbs.
Length	0.79166 ft.
Width	0.79166 ft.
Height	0.33333 ft.
Unit of sale	Each
Country of origin	CN
Category	Material Handling & Storage
