KLETON

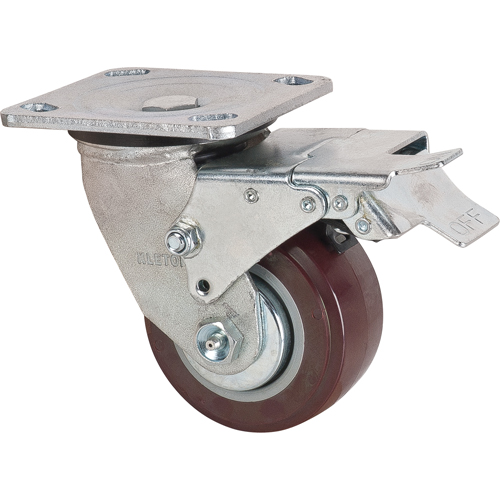

Caster

• Model: MN264
• Mfr. No.: MN264
• Category: Material Handling & Storage

• Smooth rolling, low noise operation
• Non-marking, cut and tear resistant
• Die cast aluminum core with brown polyurethane tread
• Resistant to most chemicals, moisture friendly
• Double ball raceway
• Annular ball bearing; ; Applications:; Food service equipment, factory use, mobile warehouse equipment.; ; Plate size:; 4" x 4 1/2"; ; Bolt hole centres:; 3 1/4" x 2 3/4"; ; Bolt hole size:; 3/8"
• Total locking brake locks the wheel and keeps the swivel from turning

Specifications

Wheel Diameter	4" (101.6 mm)
Capacity	550 lbs. (249.5 kg.)
Wheel Material	Polyurethane
Caster Type	Swivel with Brake
Frame Material	Steel
Tread Width	1-5/8" (41 mm)
Bolt Hole Spacing	2-5/8" x 3-5/8" (66.67 mm x 92.07 mm) - 3" x 3" (76.2 mm x 76.2 mm)
Bolt Hole Size	3/8" (9.52 mm)
Plate Size	4" x 4-1/2" (102 mm x 114 mm)
Overall Height	5 5/8" H"
Manufacturer's Warranty	1 Year Limited
Weight	5.26 lbs.
Length	0.65833 ft.
Width	0.45833 ft.
Height	0.33333 ft.
Unit of sale	Each
Country of origin	CN
Category	Material Handling & Storage
