Aurora Tools

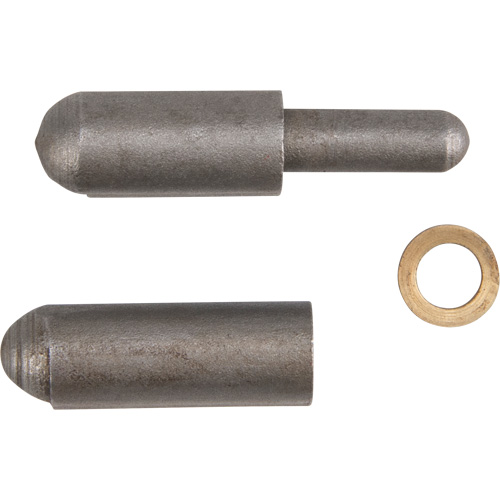

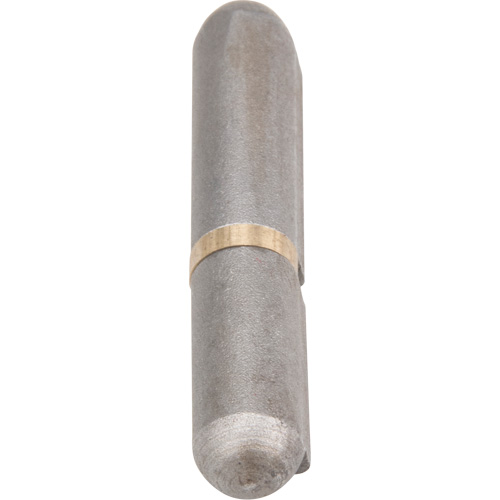

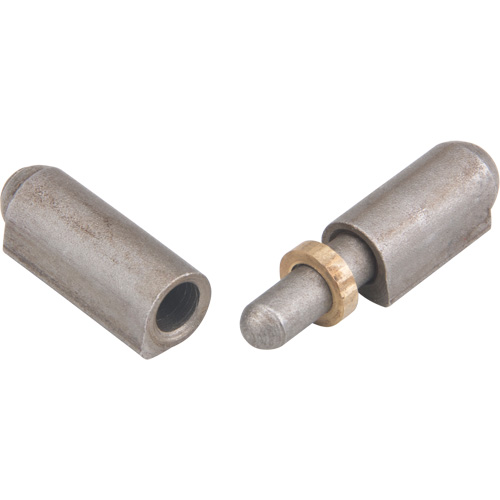

Weld-On Hinge

• Model: TTV433
• Mfr. No.: TTV433
• Category: Tools

• Ideal for gates, machinery doors, BBQ pits, electrical boxes, trailers and more
• Can be painted to match the door and frame
• Hinges are specially buffed and are free of burrs, allowing for improved paint adherence
• Comes standard with rounded ends and with/without grease fittings
• Installation: Ensure the hinge is welded along the full length of the weld tab
• Component replacement parts are available
• Built to print solutions are available upon request

Specifications

Frame Material	Mild Steel w/Fixed Steel Pin
Length	1.575"
Diameter	0.315"
Bushing Material	Brass
Pin Diameter	0.197"
Thickness	0.374"
Grease Fitting	Not Included
Manufacturer's Warranty	1 Year Limited
Weight	0.032 lbs.
Length	0.125 ft.
Width	0.025 ft.
Height	0.03333 ft.
Unit of sale	Each
Country of origin	CN
Category	Tools
