Aurora Tools

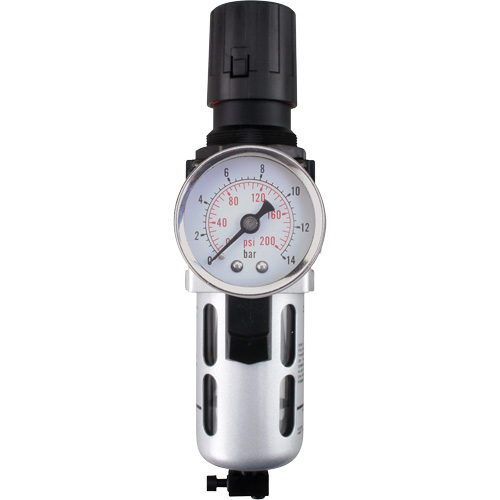

Modular Air Filter/Regulator (Gauge Included)

• Model: TYY176
• Mfr. No.: TYY176
• Category: Tools

• Filter-Regulator combination is the most popular air preparation units, assembled together to form a single unit
• Regulators are used to maintain a steady outlet pressure, unaffected by variations or fluctuations in the inlet pressure
• Filter used to separate dust, dirt, moisture and other contaminants from compressed air
• Press-type manual drain with nighttime drain feature, which automatically drains off the bowl once the compressed air supply to the filter is switched off
• Filter has sintered bronze, 40-micron filtering element
• Comes with NPT threads and gauge

Specifications

Connection Size	3/8" NPT
Max. Air Flow	64 SCFM @ 105 PSI
Max. PSI	145 PSI
Bowl Material	Polycarbonate
Bowl Capacity	1.08 fl. oz.
Series	FRL200
Manufacturer's Warranty	1 Year Limited
Weight	1.688 lbs.
Length	0.94166 ft.
Width	0.25 ft.
Height	0.25 ft.
Unit of sale	Each
Country of origin	IN
Category	Tools
